4-point contact ball bearing (Type X)

Four-point contact ball bearing
Click on the picture to zoom in.

The Type X, or 4-point contact, ball bearing is ideal for moment loading. Type X bearings are designed with gothic arch raceways creating 4 contact points between the balls and the raceways.

This design is excellent for moment loading and reversing axial loading. The Type X bearing can be used for other light loading conditions, but is not recommended in place of the Type C or Type A bearing for pure radial or axial loads.

4-point contact ball bearing (Type X)
zoom

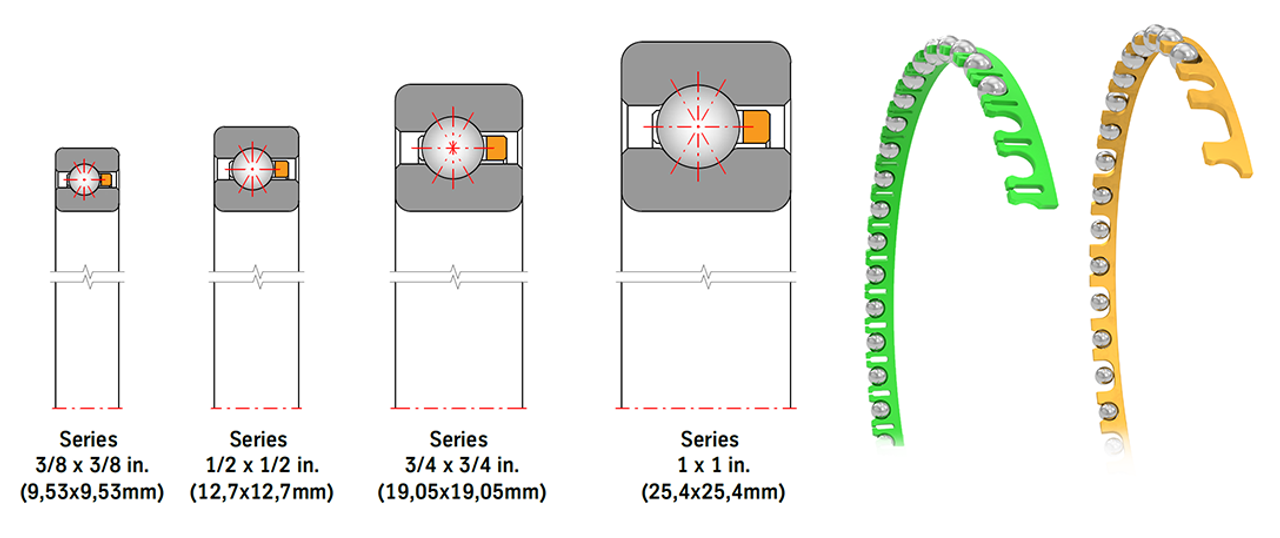

We can provide standard series dimensions ranging for

  • cross section from 3/8”(9,53mm) up to 1”(25,4mm),

  • bore diameter from 5,5”(140mm) up to 60”(1500mm)

with corresponding ball sizes and cages with pocket design, but as well we offer tailor‑made solutions engineered to meet your precise application dimensions and requirements.

For further information, please see our “psl® thin-section bearings” brochure in the download area and or contact us here:
